제품소개

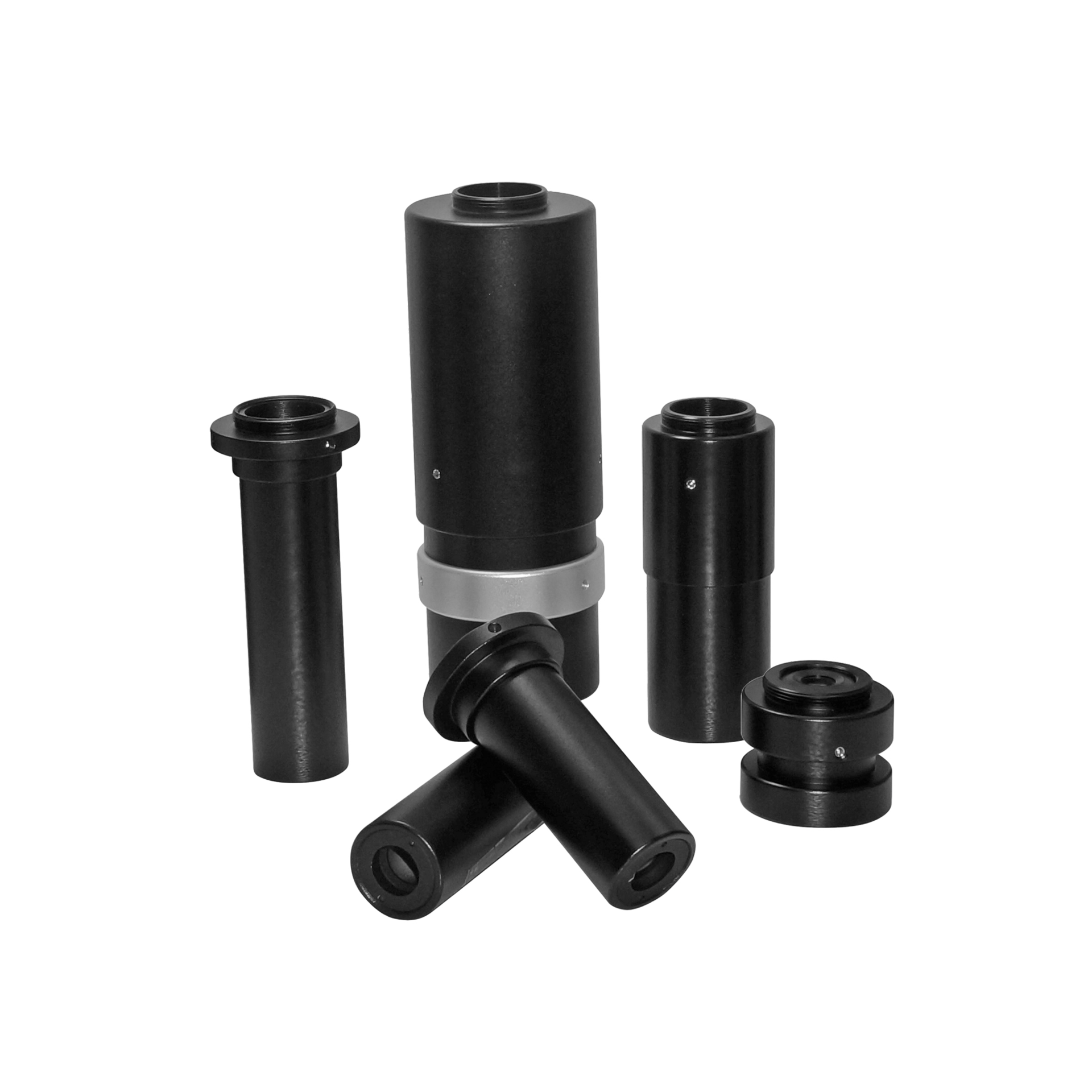

Non-Telecentric Lens

MCL Series

■ Telecentirc Lens가 요구되지 않는 환경에 응용 가능

■ 컴팩트한 사이즈 및 간편한 사용 가능

제품소개

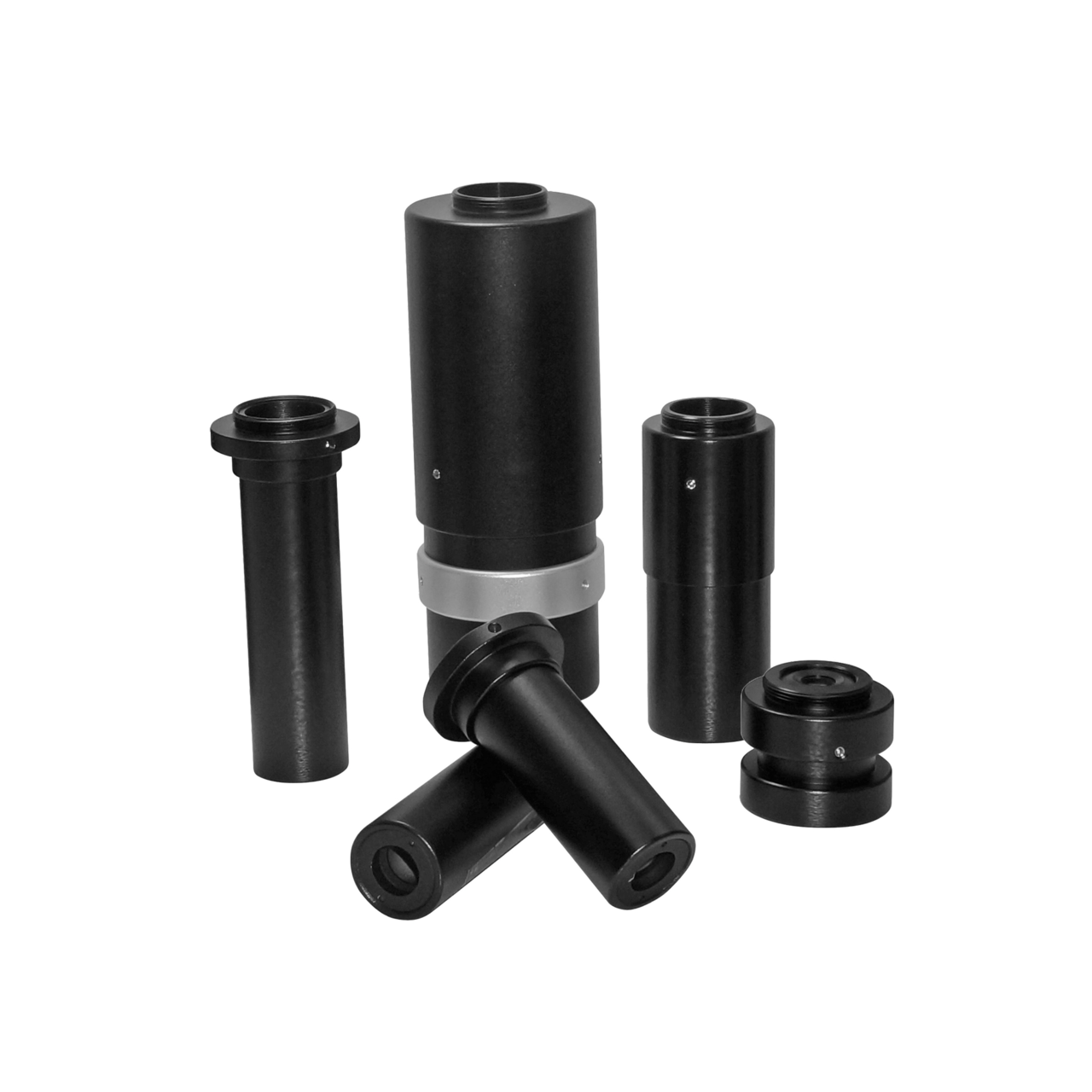

Non-Telecentric Lens

MCL Series

■ Telecentirc Lens가 요구되지 않는 환경에 응용 가능

■ 컴팩트한 사이즈 및 간편한 사용 가능

Product List

제품 목록

◈ MCL-Sensor Dia 8mm~14mm Series

Model
Mag
W.D(mm)
Resolution(um)
N.A
Effective F/#
D.O.F(um)
MCL0.063X-240-9
0.063X240
53.2
0.0063
5
100mm
MCL0.063X-300-9
0.063X300
53.2
0.0063
5
100mm
MCL0.2X-255-9
0.2X255
23.5
0.0142
7
14mm
MCL0.22X-310-11
0.22X310
22.6
0.0148
7.4
12.2mm
MCL0.228X-220-8
0.228X220
18.4
0.0182
6.25
1.48mm
MCL0.25X-279-11
0.25X279
20.6
0.0162
7.7
9.6mm
MCL0.3X-195-9
0.3X195
29
0.0115
13
9.8mm
MCL0.3X-240-110.3X240
17.4
0.0192
7.8
11.5mm
MCL0.32X-225-11
0.32X225
16.8
0.02
8
6.9mm
MCL0.35X-210-11
0.35X210
15.3
0.0218
8
6.25mm
MCL0.37X-200-11
0.37X200
14.5
0.0231
8
4.6mm
MCL0.43X-135-14
0.43X135
20.3
0.0165
13
5.6mm
MCL0.466X-125-14
0.466X125
20.1
0.0166
14
5.1mm

◈ MCL-Sensor Dia 18mm (1.1") Series

Model
Mag
W.D(mm)
Resolution(um)
N.A
Effective F/#
D.O.F(um)
MCL0.4X-190-18
0.4X19016.80.02102.7mm
MCL0.5X-160-18
0.5X16013.40.025101.7mm
MCL0.55X-107-18
0.55X10718.30.0172162.3mm
MCL0.568X-145-18
0.568X14511.80.0284101.36mm
MCL0.67X-128-18
0.67X12815.20.022152.67mm
